Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo

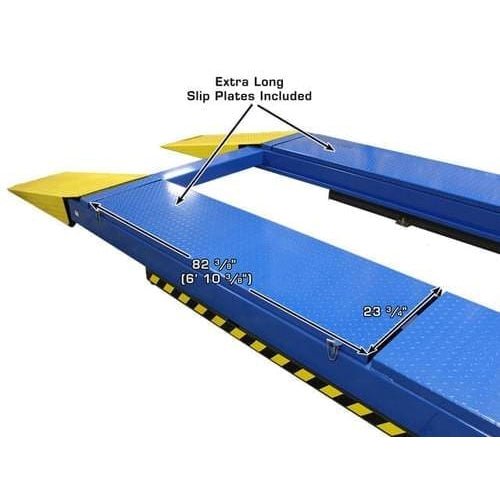

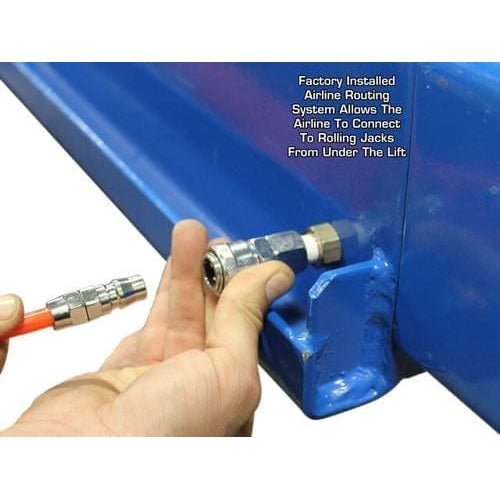

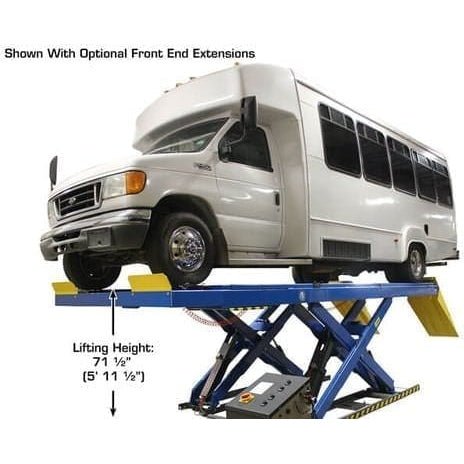

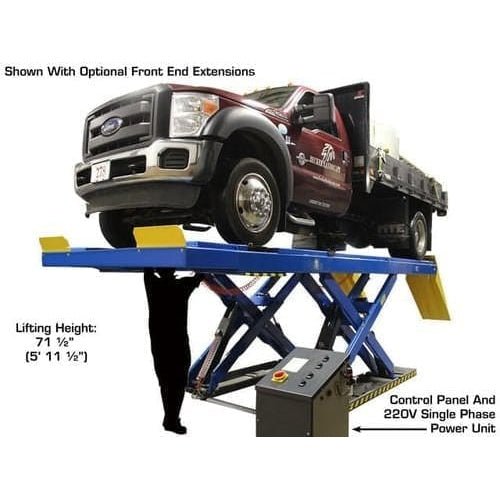

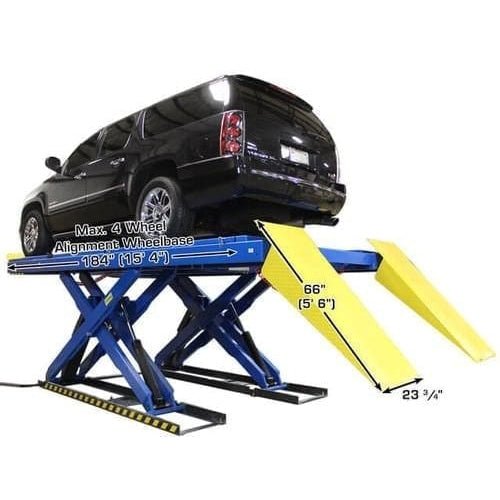

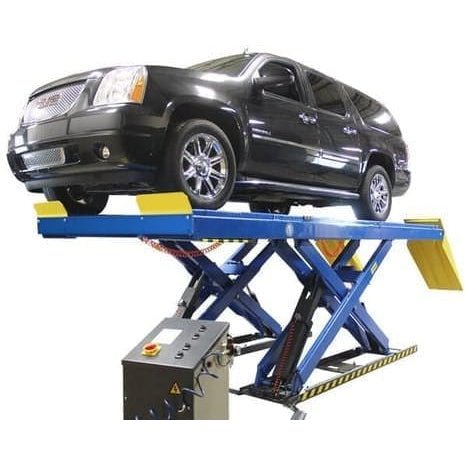

Description The Atlas® PX16A 16,000 lb. capacity scissor alignment lift is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheelbase trucks and vans. The Atlas® PX16A allows the operator to perform 4-wheel alignments for vehicles with wheelbase lengths from 96 inches to 184 inches. The Atlas® PX16A includes a set of turntables and built in slip-plates. The lift is equipped with a semi enclosed airline kit routing system to accommodate the optional airline kit. This airline kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor. This combo package also includes two of the popular Atlas® RJ8 Rolling bridge jacks. The jacks are perfect for raising a vehicle’s wheels off the lifts runways in order to service tires and brakes. .embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; } Features PX16A 16,000 lb. Capacity Heavy Duty Commercial Grade Construction Scissor Alignment Lift Front Cross-Beam for Added Stability Super-Balanced with Very Precise Platform Leveling Accuracy for Wheel Alignment Built-in Slip Plates and Alignment Turntables Included Recessed Positions for Turntables Separate Self-Contained Control Unit Air Operated Mechanical Safety Locks (External Air Supply Required) Emergency manual pump for lowering Overload Valve Included Lowering Speed Valve Included Mounting Hardware Included Extra Long Slip Plates Allow For 4-Wheel Aligning Of Wheelbases From 96″ to 184″ Shipping Weight: 6,200 lbs. 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only RJ8 8,000 lb. Capacity Air/Hydraulic Operated (external air supply required) Multiple Safety Lock Positions Compact Size with Low Profile Smooth Rolling Action Scissor mechanism allows for level lifting Powder Coated Finish 4 Piece Truck Adapter Set Included 1 Year Parts Only Warranty Specifications Atlas® PX16A Specifications Lifting Capacity 16,000 LB Lifting Height 71 1/2″ (5′ 11 1/2″) Lowered Height 13 1/4″ Overall Width 94″ (7′ 10″) Overall Length with Approach Ramps 271″ (22′ 7″) Overall Length without Approach Ramps 206 1/2″ (17′ 2 1/2″) Approach Ramp Length 66″ (5′ 6″) 4-Wheel Alignment Wheelbase Max. 184 in. 4-Wheel Alignment Wheelbase Min. 96 in. Runway Width including Rail 23 3/4″ (1′ 11 3/4″) Width Between Runways 44 7/8″ Width Between Runway Rails 41 3/8″ Air Requirement 90-120 PSI Motor/Electrical Requirement 220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required. Oil Requirement 3.5 Gallons AW32/AW46 Shipping Weight 6,200 lbs. Requires a minimum of 6″ of concrete with a 3000 psi. rating Atlas® RJ8000 Specifications Maximum Capacity 8,000 lb. Maximum Width 66 1/2″ (5′ 6 1/2″) Minimum Width 40″ (3′ 4″) Distance Between Runway Capability 34 1/2″-55″ Maximum Lifting Height (With Adapters) 30″ Air Requirement 70-115 PSI Shipping Weight 390 lbs. Adapter Heights 2 Each 2″, 3″ Arm Hole/Adapter Peg Size 1.5″ Documents Atlas® PX16A Lift Manual
