Tuxedo FP12K-K 12,000 lb Four Post Lift – Cable Driven

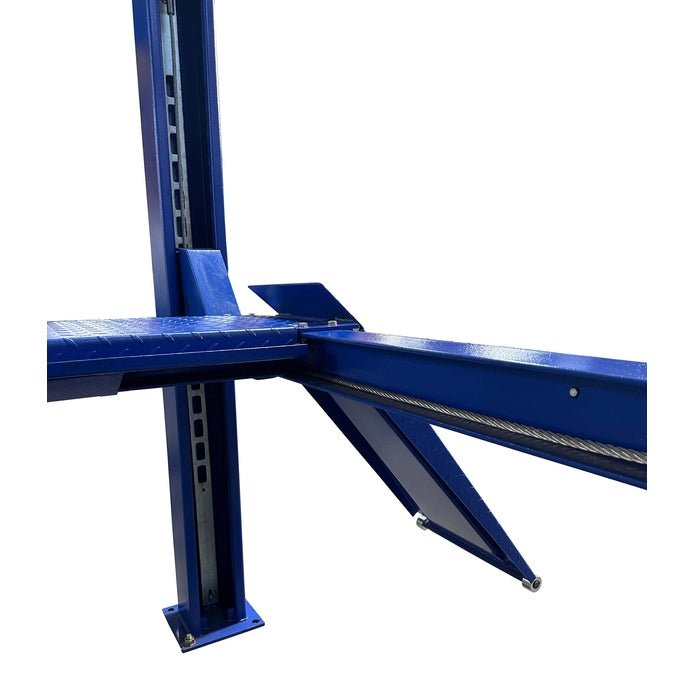

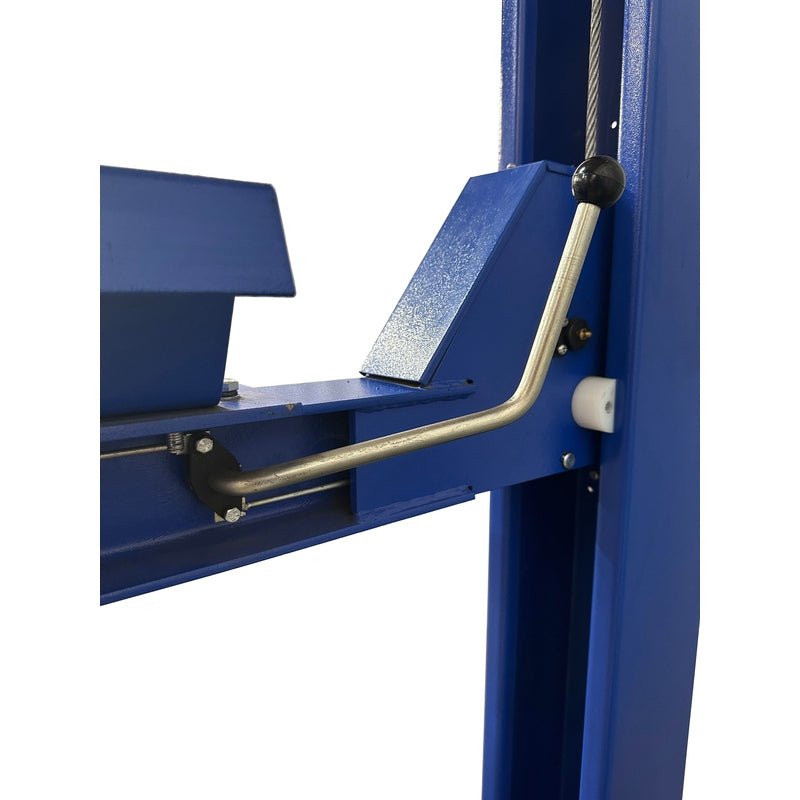

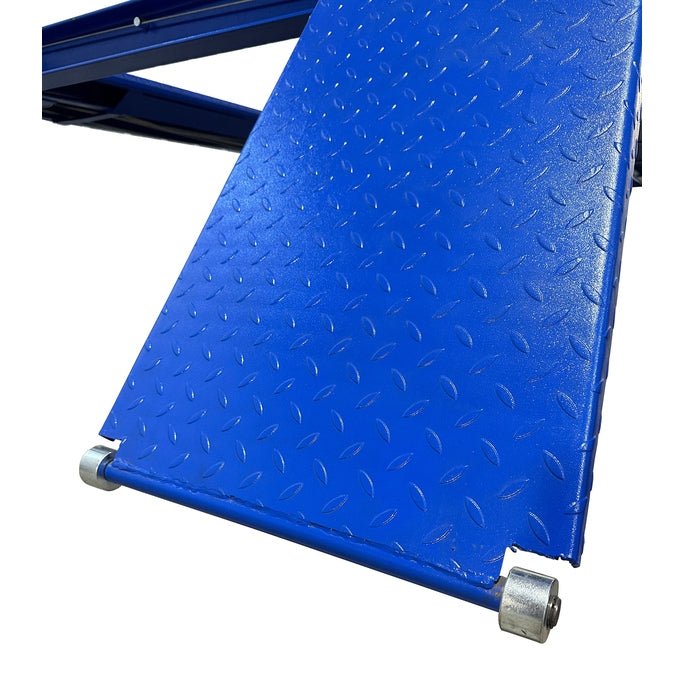

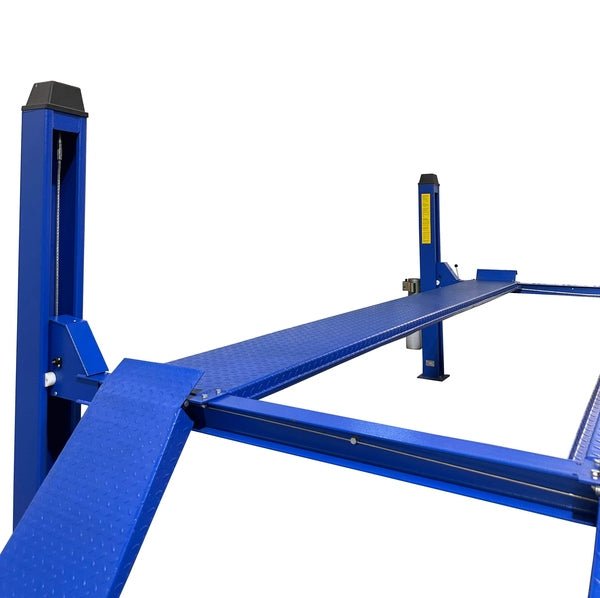

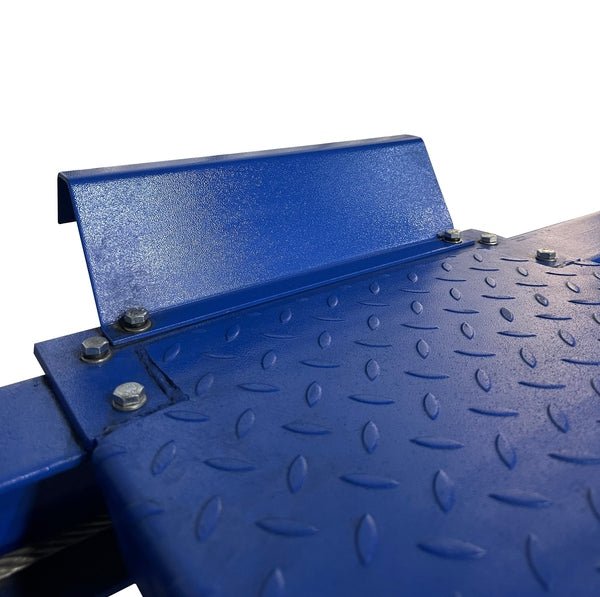

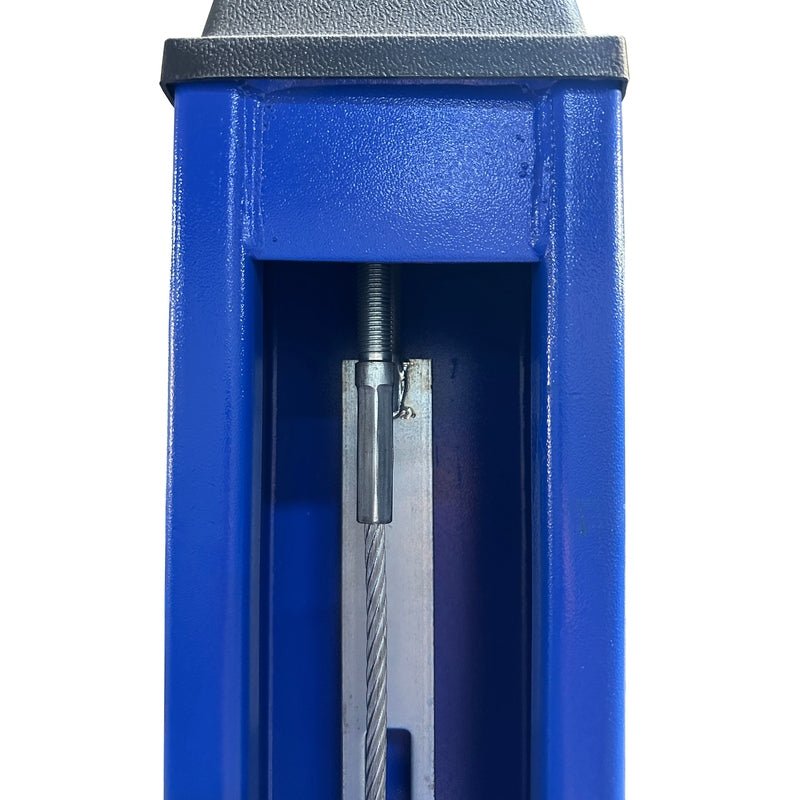

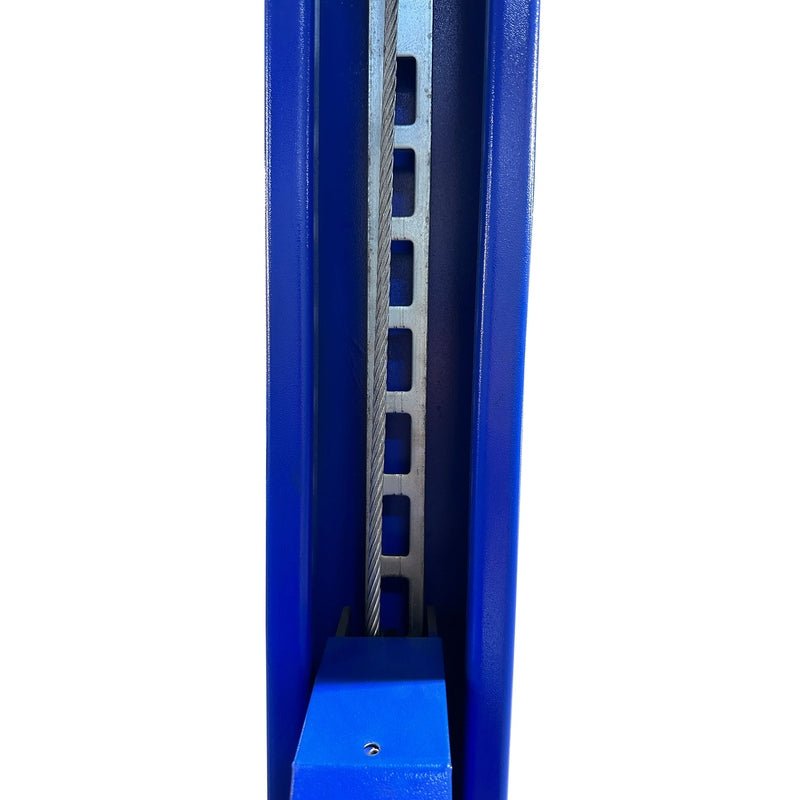

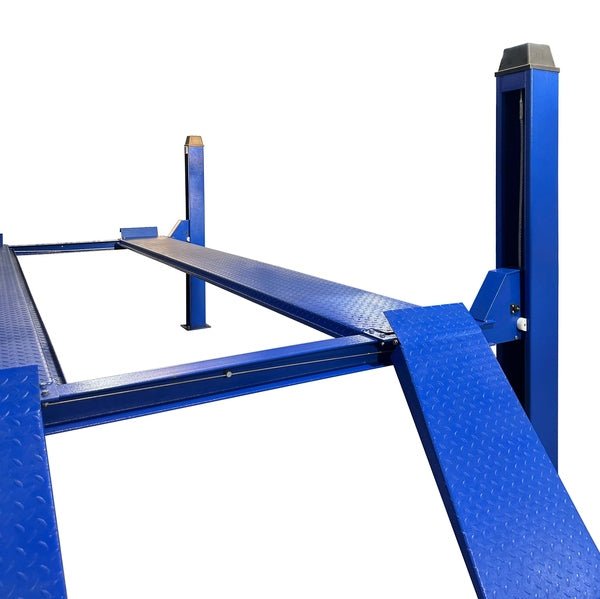

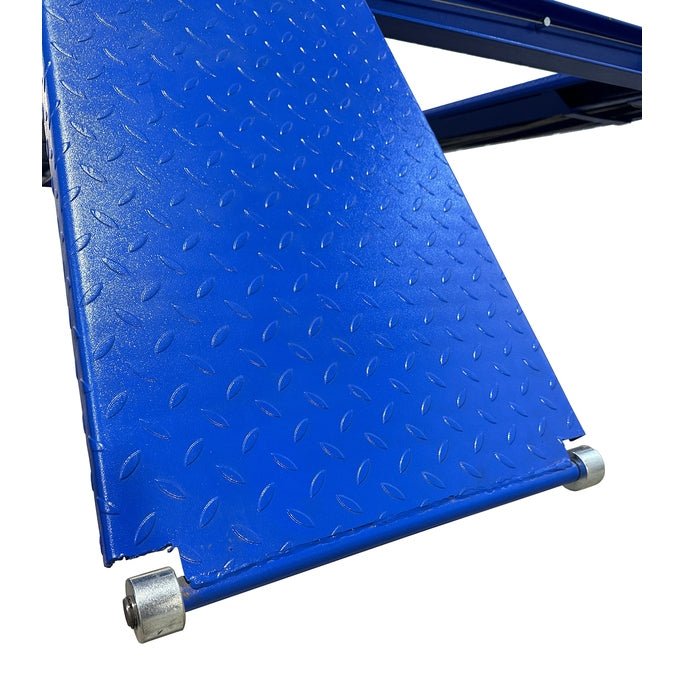

Tuxedo 12,000 lb Four Post Lift – Cable Driven *Jack sold separately Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks. Features 12,000 lbs Capacity Cable Driven 176 max wheelbase Single Point Manual Lock Release Adjustable Locking Positions Slack Cable Safety No Overhead Obstructions Powder Coat Finish Specifications Lift Model FP12K-K Capacity 12,000 lbs. Overall Length w/Ramp 232-1/2″ Overall Width(Without Power Unit) 123″ Overall Width (With Power Unit) 134″ Overall Height 84″ Max Rise Height 67-1/2″ Min Height 7″ Width Between Posts 105″ Length Between Posts 177″ Width Between Runways 36-1/2″ Width Of Runways 19″ Max Wheelbase 167″ Ramp Length 35″ Max. Clearance Under Runway 63-1/4″ Drive-Thru Clearance 87-1/2″ Base Plate 11″ X 11″ Power Requirement 220V – 20 Amp – 1PH Ship Weight 2,255 lbs. Min Bay Size 15″ x 23″ Recommended RAJ-8K & Tuxedo Lift Combo
